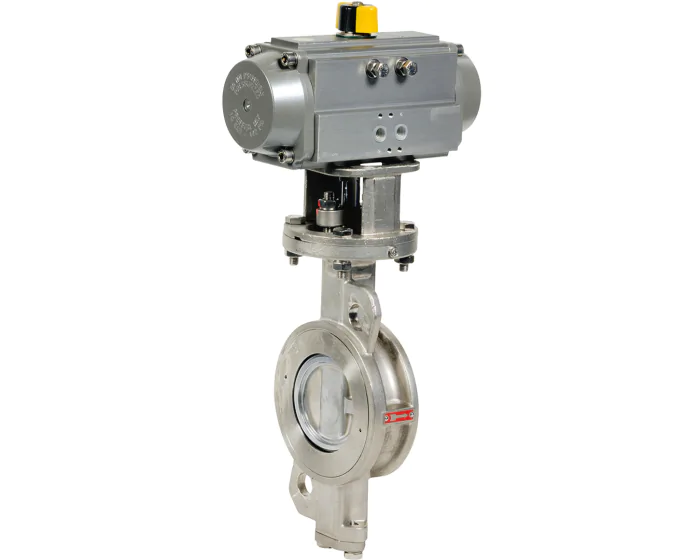

The 1116 double offset butterfly valve is made of stainless steel body and disc, and PTFE/graphite seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 20 bar, TS: 210°C. Mounting between flanges ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | DN50 - 2'' |
| Body material | Stainless steel 316 (1.4401) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| Packing gland | Graphite |
| PS (bar) | 20 |
| Connections | Between flanges #150 PN20 |
| Seats | PTFE-Graphite |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | High performance butterfly valves |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN50 - 2'' Double acting | 260930017008R | S1001199 |
€689.99
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN50 - 2'' Spring return | 260930017109R | S1001200 |
€777.79
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN65 - 2''1/2 Double acting | 260931017008R | S1001201 |
€791.39
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN65 - 2''1/2 Spring return | 260931017109R | S1001202 |
€889.90
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN80 - 3'' Double acting | 260932017008R | S1001203 |
€956.49
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN80 - 3'' Spring return | 260932017110R | S1001204 |
€1,128.29
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN100 - 4'' Double acting | 260933017009R | S1001205 |
€1,404.81
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN100 - 4'' Spring return | 260933017111R | S1001206 |
€1,623.01
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN125 - 5'' Double acting | 260934017010R | S1001207 |
€1,442.69
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN125 - 5'' Spring return | 260934017112R | S1001208 |
€1,685.61
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN150 - 6'' Double acting | 260935017011R | S1001209 |
€1,978.80
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN150 - 6'' Spring return | 260935017113R | S1001210 |
€2,415.36
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN200 - 8'' Double acting | 260936017012R | S1001211 |
€2,832.76
(excl. btw)
|
add to cart |
| Between flanges #150 PN20 Stainless steel 316 (1.4401) Double offset DN200 - 8'' Spring return | 260936017114R | S1001212 |
€3,323.53
(excl. btw)
|
add to cart |
